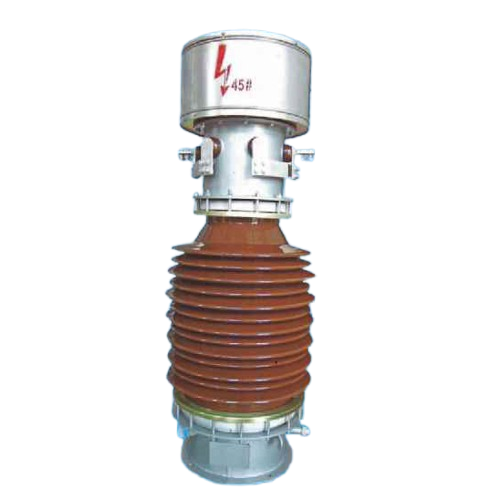

LB5-66(W)
Adopting mature oil insulation structure and high-purity insulating oil, the LB5-66(W) boasts reliable high-voltage insulation and stable heat dissipation performance. Equipped with a high-quality magnetic core, it maintains accurate current transformation ratio and low measurement error, effectively resisting electromagnetic interference in complex power grid operating environments.
Featured with a fully sealed integrated structure, this 66kV current transformer thoroughly prevents oil leakage, moisture and dust intrusion. The high-strength anti-fouling porcelain sleeve with multi-layer anti-corrosion treatment supports stable all-weather operation in harsh environments, including high altitude, low temperature and coastal salt fog polluted areas.
Optimized with scientific winding layout and balanced structural design, the LB5-66(W) has strong overload resistance and low operating noise. It features long service life and low daily maintenance, greatly reducing operational and maintenance costs for 66kV power grid construction and renovation projects.
As essential core supporting equipment for 66kV power engineering, the LB5-66(W) outdoor oil immersed current transformer delivers high measurement precision and superior operational stability. We provide global customers with factory direct supply, complete certification documents and professional one-stop after-sales service.
Product Details

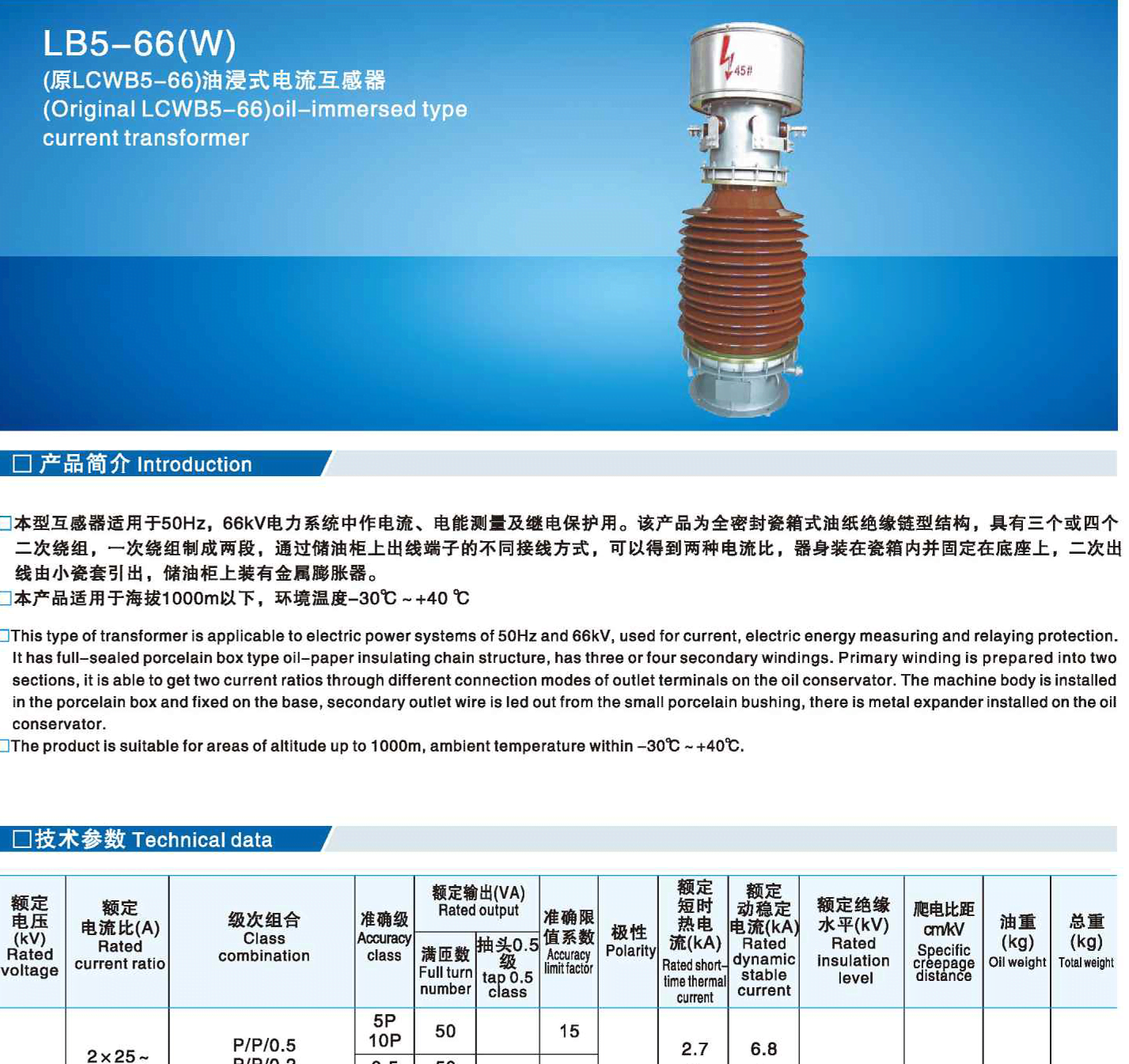

LB5-66(W)
(Original LCWB5-66)oil-immersed type current transformer
□Introduction
□This type of transformer is applicable to electric power systems of 50Hz and 66kV,used for current,electric energy measuring and relaying protection. It has full-sealed porcelain box type oil-paper insulating chain structure,has three or four secondary windings.Primary winding is prepared intotwo sections,it is able to get two current ratios through differentconnection modes of outletterminals on the oil conservator.The machine body is installed in the porcelain box and fixed on the base,secondary outlet wire is led out from the smallporcelain bushing,there is metalexpanderinstalled on the oil conservator.
□The product is suitable for areas of altitude up to 1000m,ambient temperature within-30℃~+40℃ .

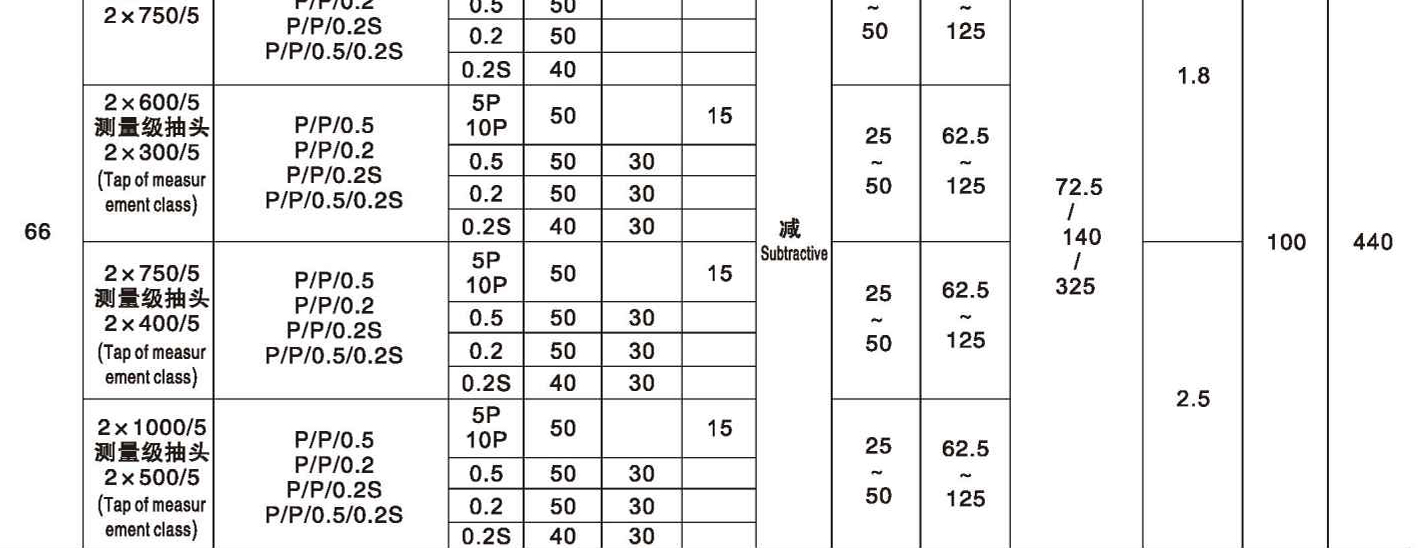

□Technical data

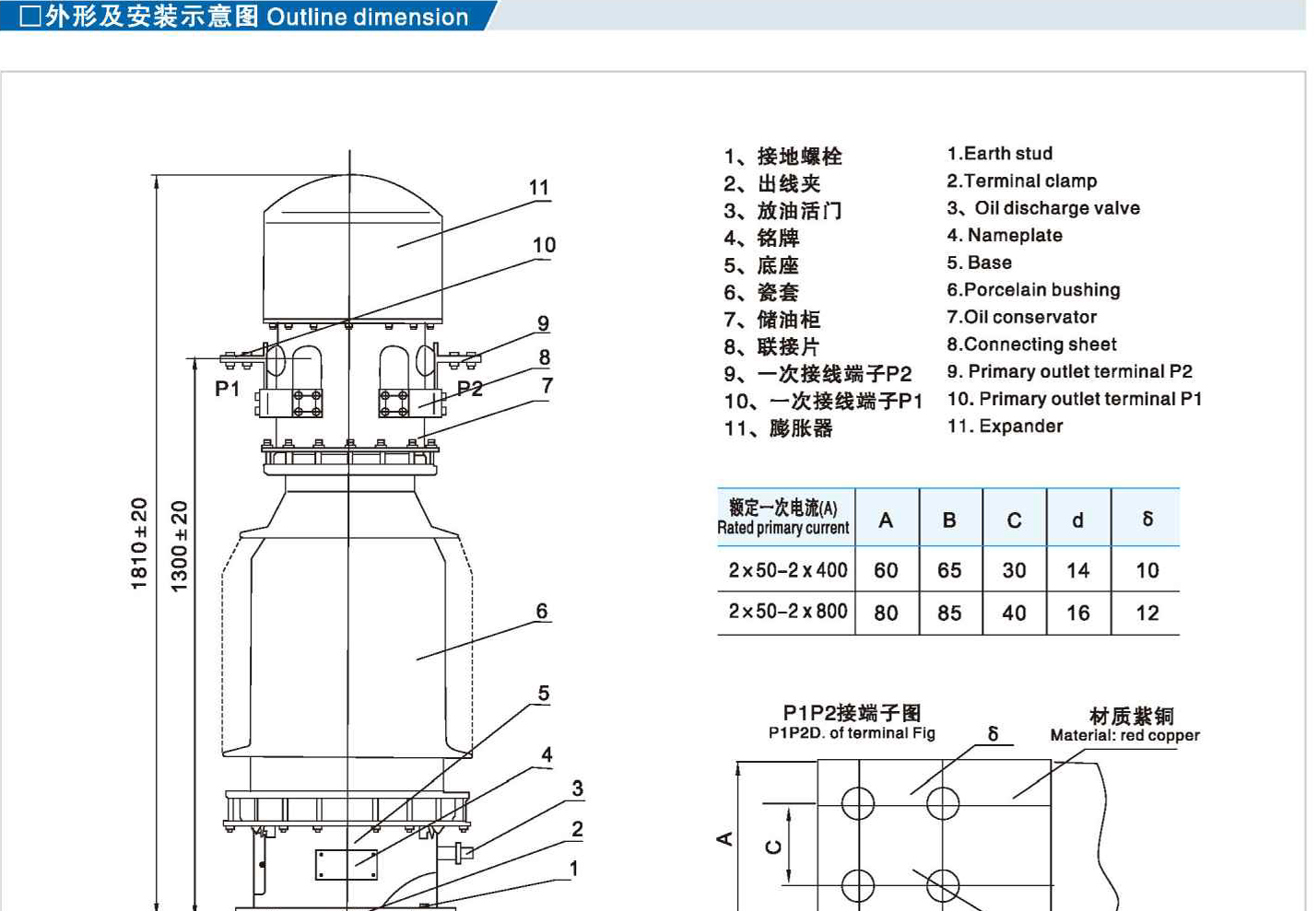

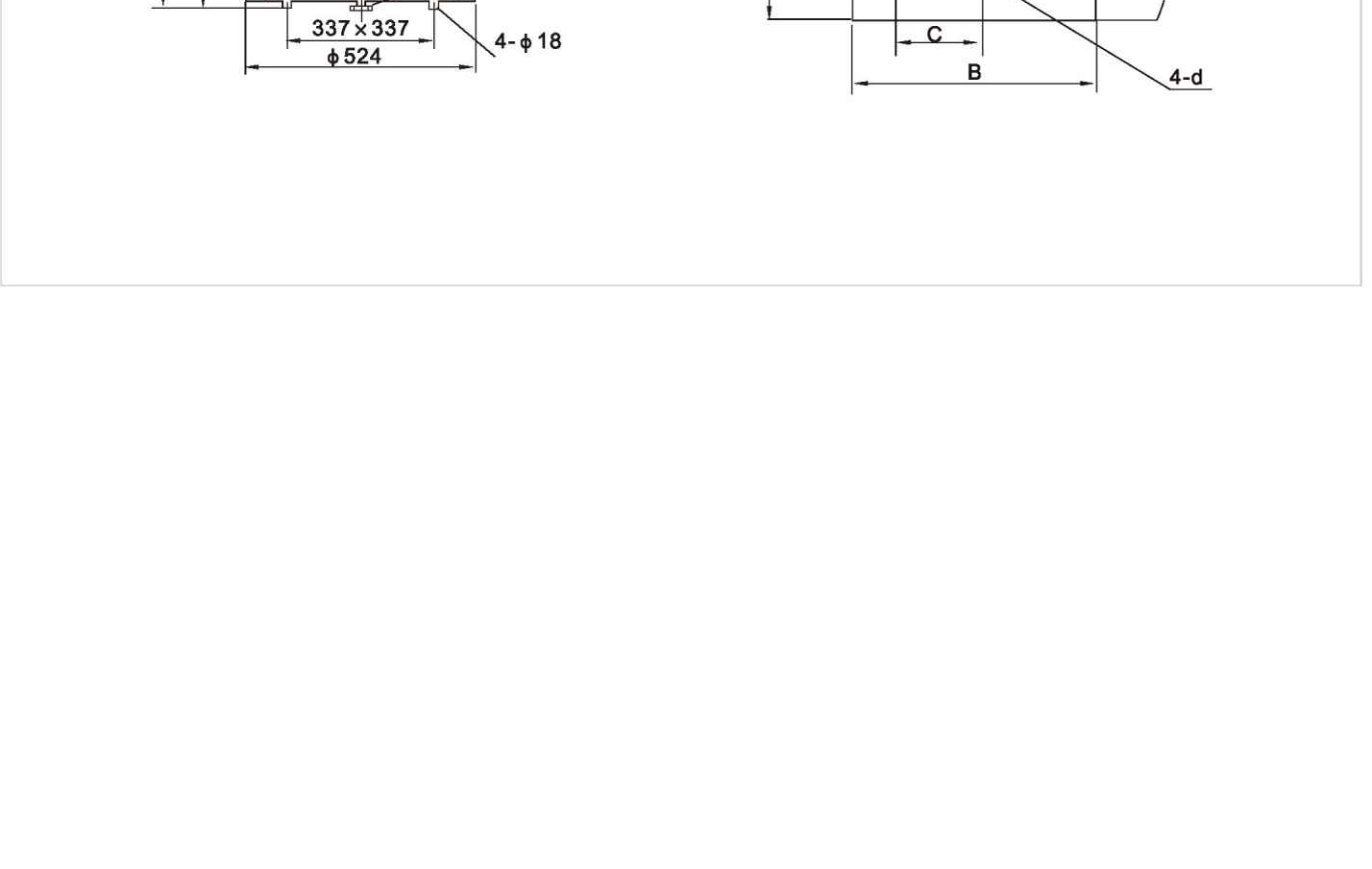

□Outline dimension
