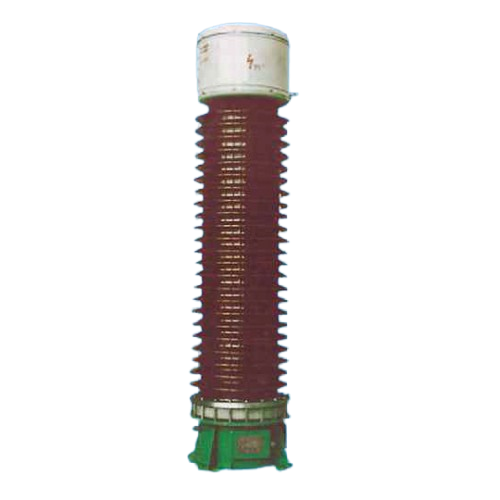

JDCF-220W1
Featuring professional cascade insulation structure and high-purity insulating oil, the 220kV voltage transformer delivers superior ultra-high voltage insulation and heat dissipation performance. Adopting low-loss silicon steel core, JDCF-220W1 maintains stable transformation ratio and high measurement accuracy, effectively resisting voltage fluctuation and electromagnetic interference in complex grid working environments.
Built with a fully sealed integrated structure and top metal expander, the JDCF-220W1 voltage transformer effectively prevents oil leakage, moisture and dust ingress. The high-strength anti-fouling porcelain sleeve with multi-layer anti-corrosion treatment meets high pollution resistance standards, ensuring stable all-weather operation in high altitude, low temperature, coastal salt fog and industrial polluted areas.
Optimized with balanced insulation and reasonable winding layout, the JDCF-220W1 outdoor transformer has strong overload capacity, low operating noise and stable excitation performance. It features long service life and maintenance-free operation, greatly reducing operation and maintenance costs for 220kV large-scale power grid projects.
Serving as essential equipment for 220kV high voltage grid construction and upgrading, the JDCF-220W1 oil immersed voltage transformer boasts high precision and strong environmental adaptability. We provide global clients factory direct supply, customized solutions, complete certifications and reliable after-sales service for all power engineering projects.

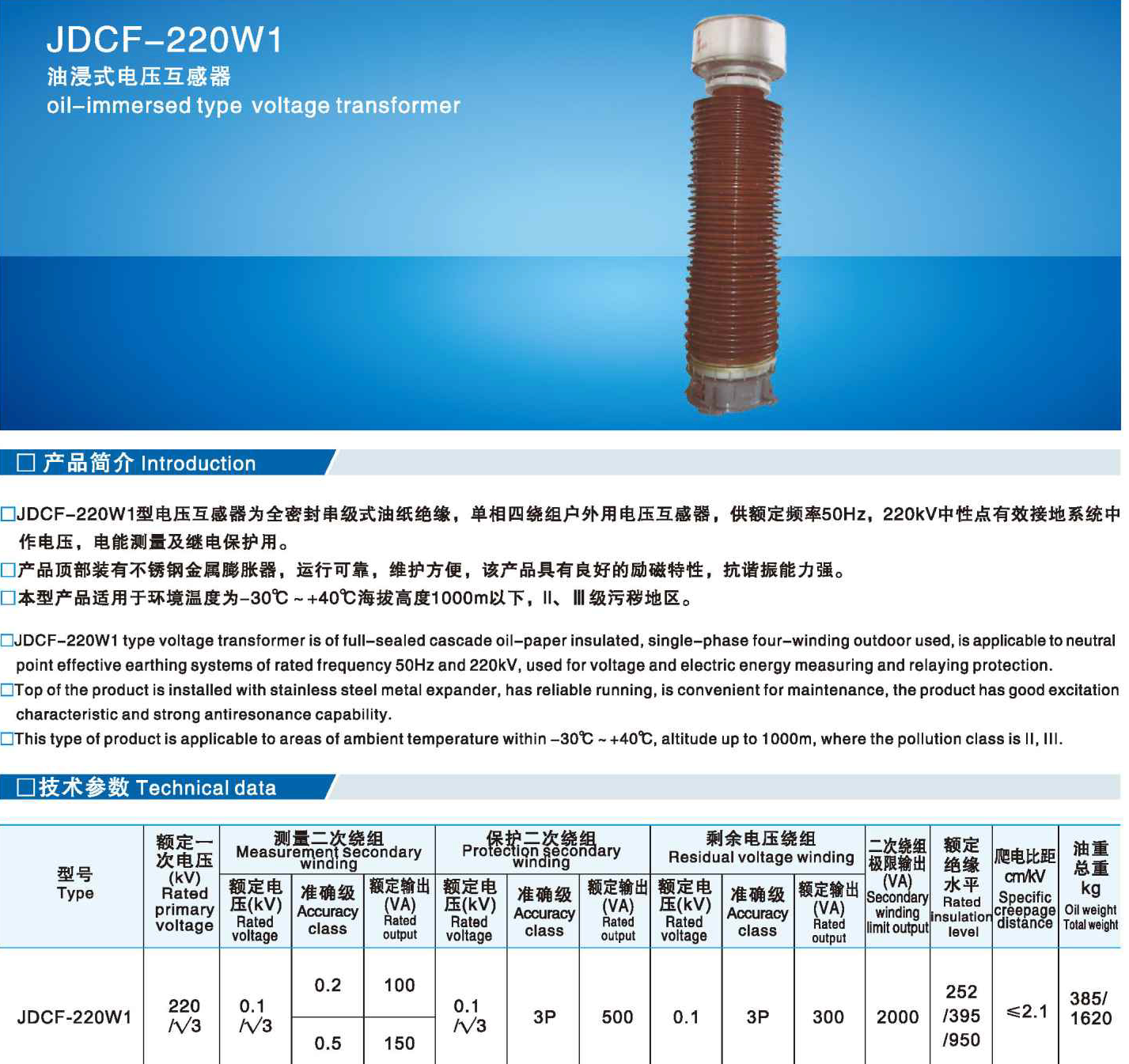

Product Details
JDCF-220W1
oil-immersed type voltage transformer
□Introduction
□JDCF-220W1 type voltage transformer is of full-sealed cascade oil-paper insulated,single-phase four-winding outdoor used,is applicable to neutral point effective earthing systems of rated frequency 50Hz and 220kV,used for voltage and electric energy measuring and relaying protection.
□Top of the product is installed with stainless steel metal expander,has reliable running,is convenient for maintenance,the product has good excitation characteristic and strong antiresonance capability.
□This type of product is applicable to areas of ambient temperature within-30℃~+40℃,altitude up to 1000m,where the pollution class is II,III.
□Technical data
| Type | Rated primary voltage（KV) | Measuring the secondary winding | Protect the secondary winding | Residual voltage winding | Secondary winding limit output | Rated insulation level |
Creepage distance cm/kv |
Oil weight Total weight kg |
||||||
| Rated voltage(KV) | accuracy level | Rated output(VA) | Rated voltage(KV) | accuracy level | Rated output(VA) | Rated voltage(KV) | accuracy level | Rated output(VA) | ||||||
| JDCF-220W1 | 220/√3 | 0.1/√3 | 0.2 | 100 | 0.1/√3 | 3P | 500 | 0.1 | 3P | 300 | 2000 | 252/1395/950 | 2.1 | 385/1620 |
| 0.5 | 150 | |||||||||||||

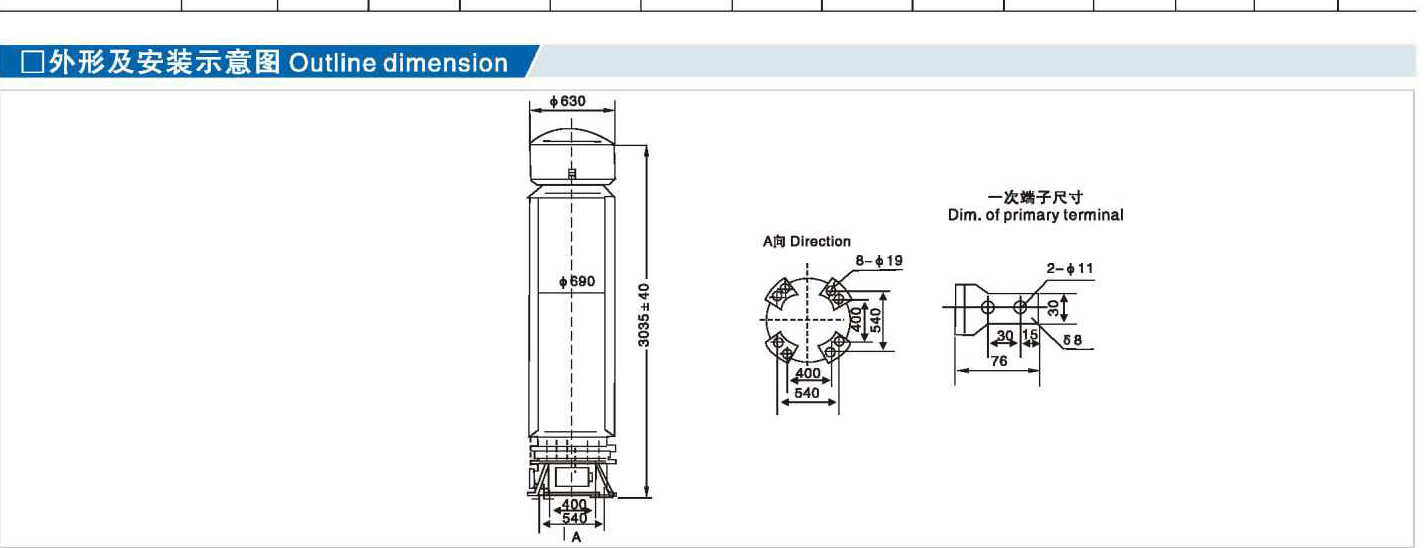

□Outline dimension
