BJX-110
Adopting optimized integrated structural design and high-strength conductive components, the BJX-110 features excellent conductive performance, low power consumption and stable load capacity. The precision internal assembly process ensures accurate circuit matching and efficient power transmission, effectively avoiding power loss and improving the overall operation efficiency of the power grid system.
Equipped with mature insulation protection structure and high-quality insulating materials, this 110kV distribution device boasts superior high-voltage insulation performance and strong dielectric resistance. It can effectively resist electromagnetic interference and voltage impact in complex power grid environments, preventing short circuits, leakage and other potential faults to ensure safe operation.
Designed with a fully sealed and dust-proof structure, the BJX-110 effectively isolates moisture, dust and corrosive substances. With multi-layer anti-corrosion and anti-aging treatment on the outer structure, the equipment maintains stable long-term operation in harsh environments such as high altitude, low temperature and coastal salt fog areas, realizing excellent environmental adaptability.
Featuring compact layout, reasonable structural design and convenient installation and maintenance, the BJX-110 greatly saves installation space and reduces daily operation and maintenance costs. It supports diverse power distribution modes and customized configurations to meet the construction and upgrading demands of various 110kV high voltage power engineering projects.
As indispensable core supporting equipment for 110kV high voltage power systems, the BJX-110 power distribution device delivers outstanding operational stability and safety. We provide global customers with factory direct supply, complete certification documents and professional one-stop after-sales service.
Product Details
BJX-110

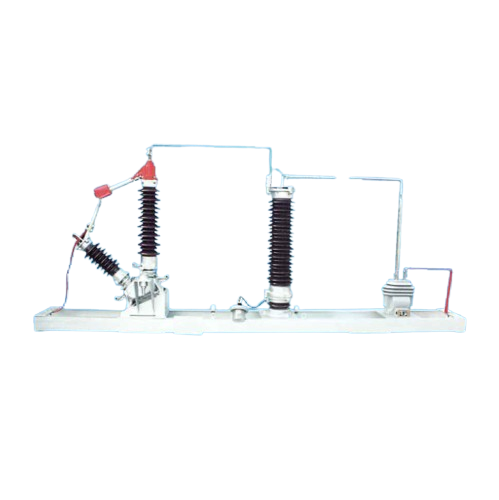

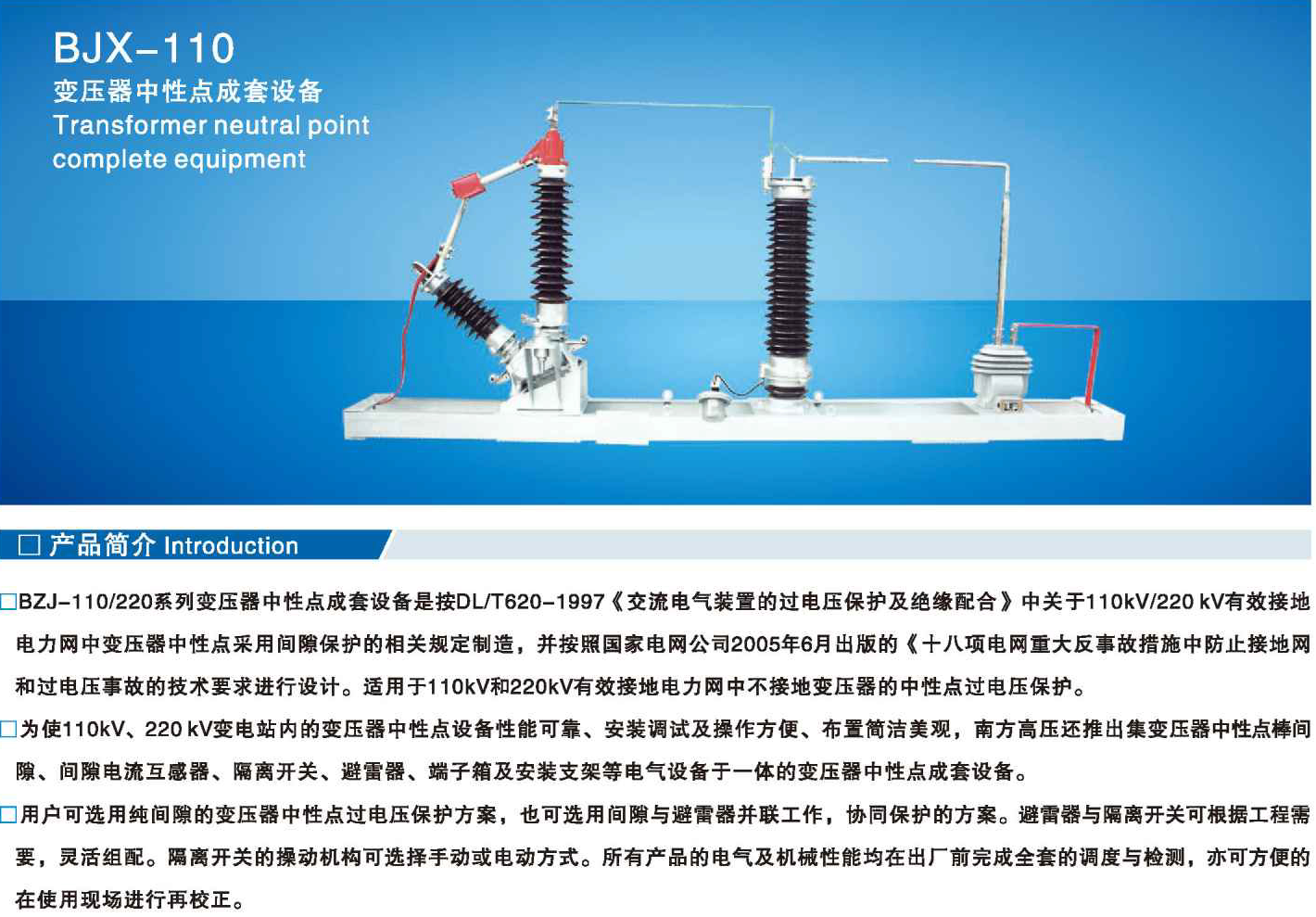

Transformer neutral point complete equipment
□ Introduction

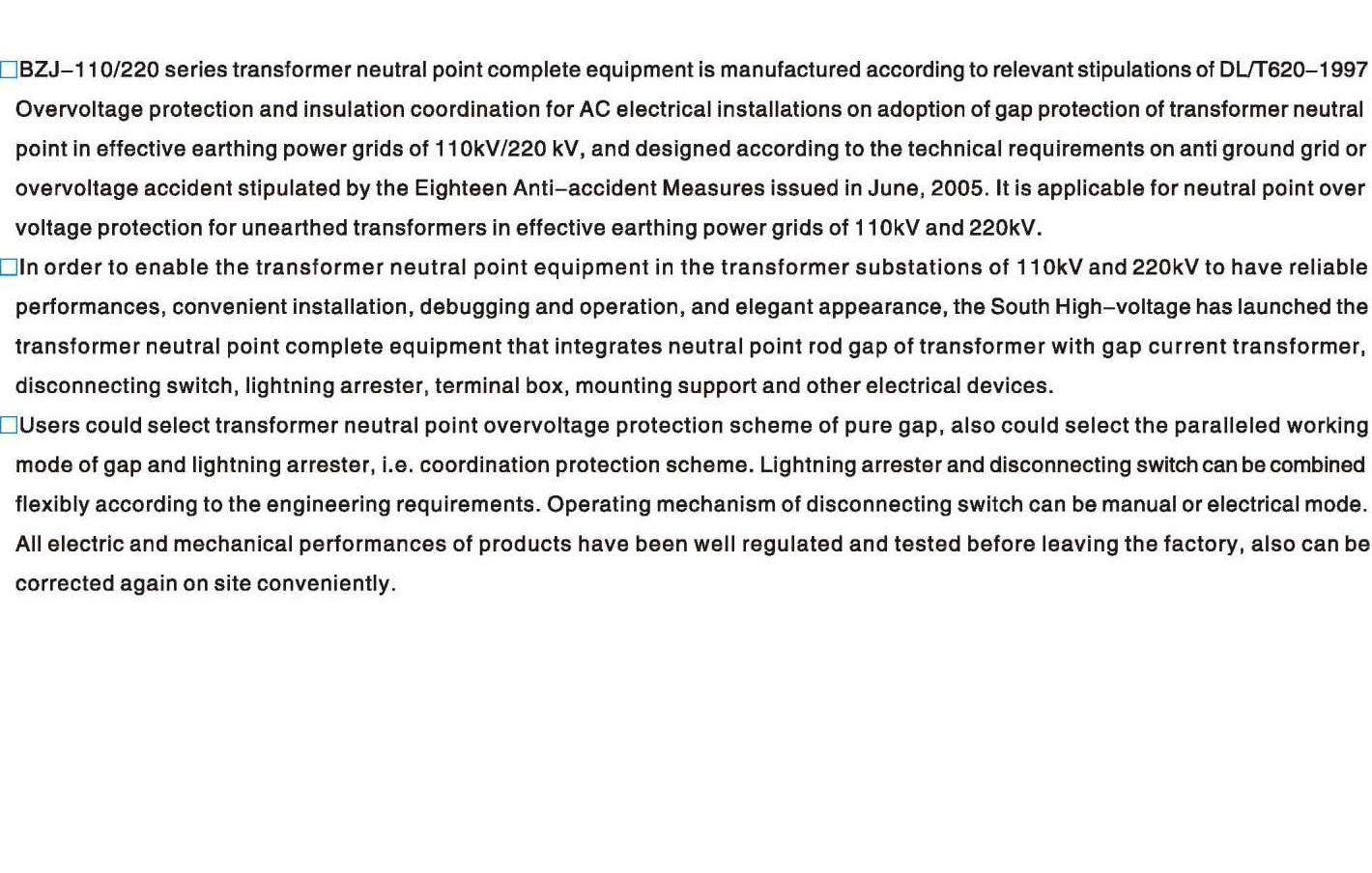

□BZJ-110/220 series transformer neutral point complete equipment is manufactured according to relevant stipulations of DL/T620-1997 Overvoltage protection and insulation coordination for AC electrical installations on adoption of gap protection of transformer neutral point in effective earthing power grids of 110kV/220 kV,and designed according to the technical requirements on antiground grid or overvoltage accident stipulated by the Eighteen Anti-accident Measures issued in June,2005. It is applicable for neutral point over voltage protection for unearthed transformers in effective earthing power grids of 110kV and 220kV.
□In order to enable the transformer neutral point equipment in the transformer substations of 110kV and 220kV to have reliable performances,convenient installation,debugging and operation,and elegant appearance,the South High-voltage has launched the transformer neutral point complete equipment that integrates neutral point rod gap of transformer with gap current transformer, disconnecting switch,lightning arrester,terminal box,mounting support and other electrical devices.
□Users could select transformer neutral point overvoltage protection scheme of pure gap,also could select the paralleled working mode of gap and lightning arrester,i.e.coordination protection scheme.Lightning arrester and disconnecting switch can be combined flexibly according to the engineering requirements.Operating mechanism of disconnecting switch can be manual or electrical mode. All electric and mechanical performances of products have been well regulated and tested before leaving the factory,also can be corrected again on site conveniently.

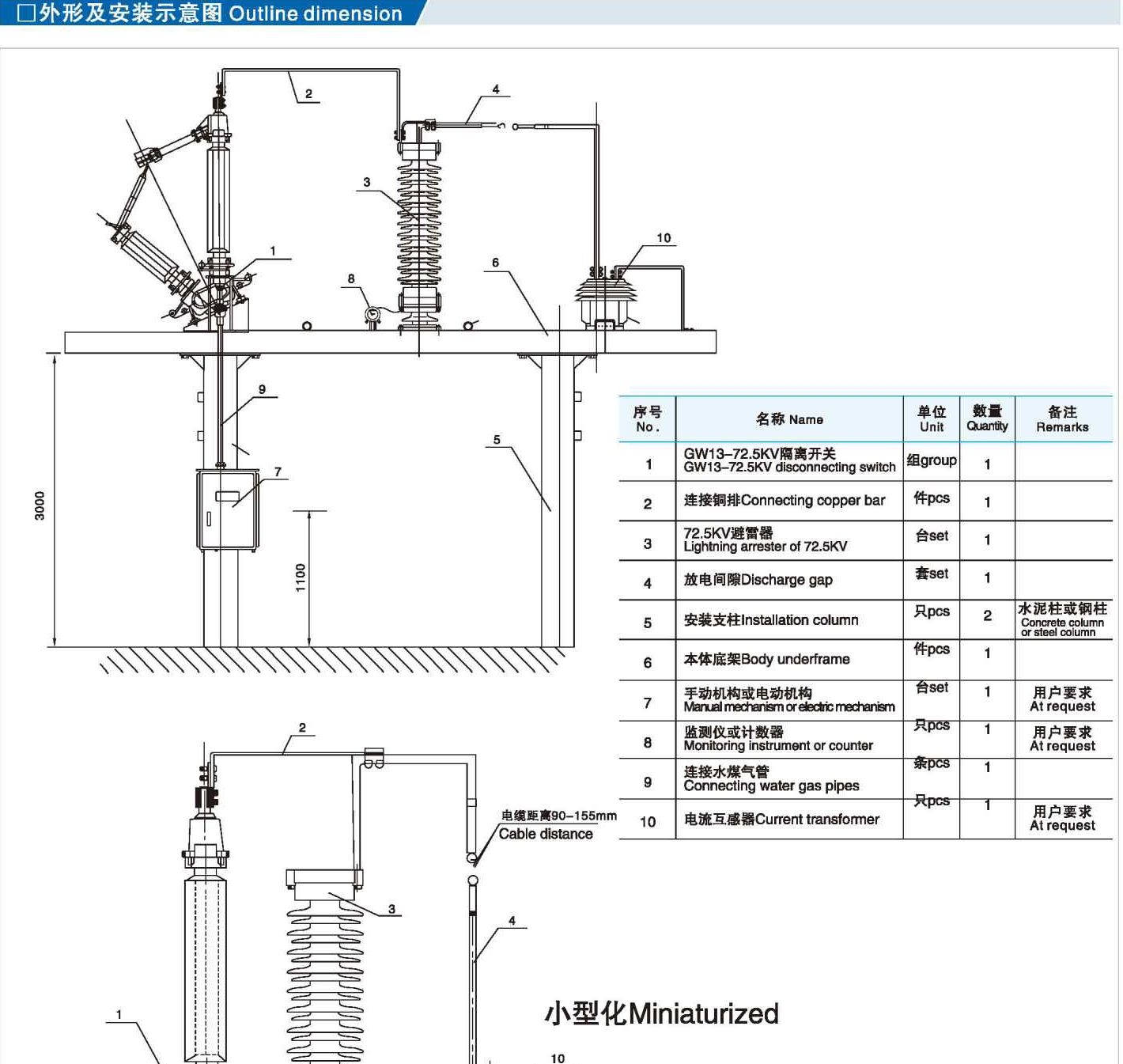

□Outline dimension
