LW36-72.5

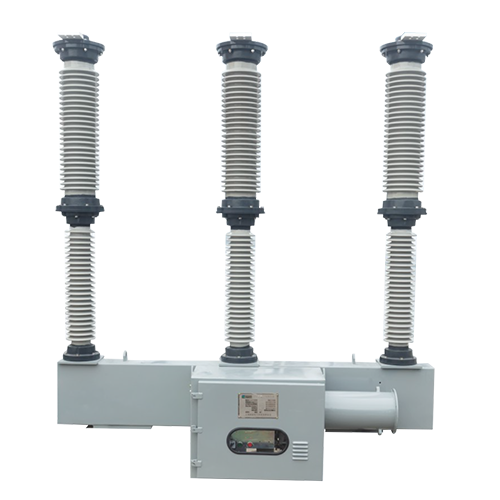

The LW36-72.5 is a high-performance outdoor three-phase AC high-voltage SF6 circuit breaker developed for 72.5kV power transmission and distribution systems. Complying strictly with IEC 62271-100 and national GB standards, this professional high voltage switchgear is widely applied in large-scale power substations, thermal power plants, wind power bases, photovoltaic power stations and industrial heavy-duty power grid systems for circuit switching, overload protection and short-circuit fault isolation.
Adopting high-purity SF6 gas as the insulating and arc-extinguishing medium, the LW36-72.5 circuit breaker adopts advanced self-energy arc extinguishing technology. It delivers outstanding dielectric insulation performance and ultra-strong short-circuit breaking capability, ensuring rapid and stable arc extinction in extreme fault conditions. Compared with conventional high voltage breakers, this model features lower operating power, minimal mechanical impact and extremely low failure rate during long-term cyclic operation.
Equipped with a reliable high-strength spring operating mechanism, the LW36-72.5 outdoor circuit breaker achieves precise and consistent closing and opening actions. The overall fully sealed integrated structure is professionally treated with anti-corrosion, dust-proof and moisture-proof technology. It can adapt to harsh outdoor working environments, including high altitude, low temperature, coastal salt fog, heavy dust and strong wind, maintaining stable operation in all-weather conditions.
The LW36-72.5 SF6 circuit breaker supports multiple mainstream specifications of rated current and short-circuit breaking current to meet diverse requirements of national and international power engineering projects. With a compact and reasonable structural design, it is easy to install and debug on site, requiring almost no daily maintenance. It effectively reduces the operation and maintenance cost of power grid equipment and improves the overall operational efficiency of the power system.
As a core 72.5kV high voltage power device, the LW36-72.5 circuit breaker features high safety coefficient, stable mechanical performance and ultra-long service life. We provide global customers with factory direct sales, customizable technical solutions, complete product certification and professional after-sales support, ensuring reliable and safe operation of various high-voltage power projects.
Adopting high-purity SF6 gas as the insulating and arc-extinguishing medium, the LW36-72.5 circuit breaker adopts advanced self-energy arc extinguishing technology. It delivers outstanding dielectric insulation performance and ultra-strong short-circuit breaking capability, ensuring rapid and stable arc extinction in extreme fault conditions. Compared with conventional high voltage breakers, this model features lower operating power, minimal mechanical impact and extremely low failure rate during long-term cyclic operation.
Equipped with a reliable high-strength spring operating mechanism, the LW36-72.5 outdoor circuit breaker achieves precise and consistent closing and opening actions. The overall fully sealed integrated structure is professionally treated with anti-corrosion, dust-proof and moisture-proof technology. It can adapt to harsh outdoor working environments, including high altitude, low temperature, coastal salt fog, heavy dust and strong wind, maintaining stable operation in all-weather conditions.
The LW36-72.5 SF6 circuit breaker supports multiple mainstream specifications of rated current and short-circuit breaking current to meet diverse requirements of national and international power engineering projects. With a compact and reasonable structural design, it is easy to install and debug on site, requiring almost no daily maintenance. It effectively reduces the operation and maintenance cost of power grid equipment and improves the overall operational efficiency of the power system.
As a core 72.5kV high voltage power device, the LW36-72.5 circuit breaker features high safety coefficient, stable mechanical performance and ultra-long service life. We provide global customers with factory direct sales, customizable technical solutions, complete product certification and professional after-sales support, ensuring reliable and safe operation of various high-voltage power projects.
Product Details
Overview

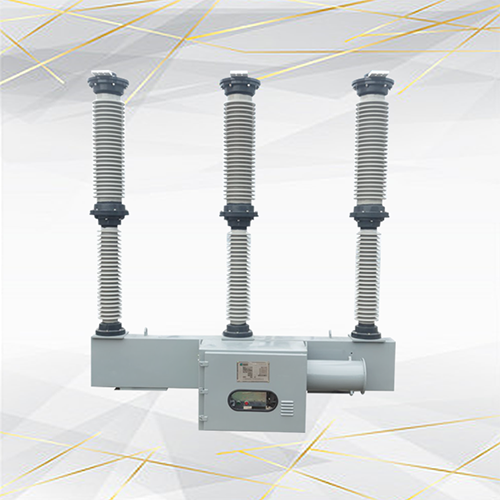

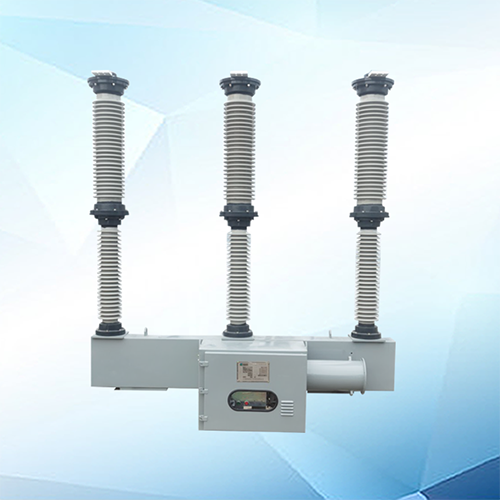

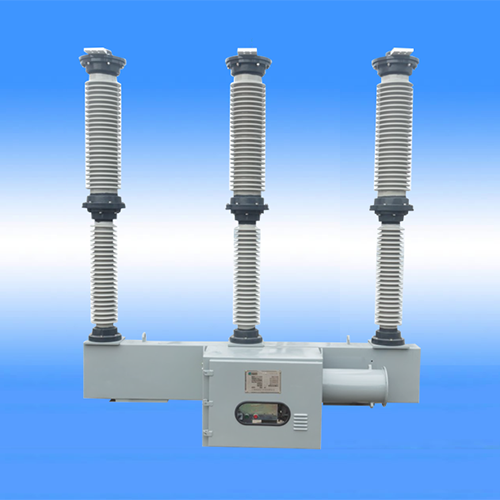

LW36-72.5 porcelain column type high voltage AC sulfur hexafluoride circuit breaker is equipped with CT20 spring operating mechanism, adopts self-energy arc extinguishing principle, and is a single-break structure. The three poles of each circuit breaker are installed on a frame to realize three-phase mechanical linkage through the transmission mechanism. The electric control can realize remote and local operation.
LW36-72.5 self-energy high voltage AC sulfur hexafluoride circuit breaker is an outdoor three-phase porcelain column type electrical equipment, mainly suitable for AC 50Hz, 72.5kV power system in high-cold areas (for power stations in general areas and power stations in high-cold areas at -40℃). This product can be operated frequently and can be used as a contact circuit breaker.
Product performance
This product has all the performance of LW36-126 circuit breaker, namely:
■Adopt thermal expansion plus auxiliary compressed air self-energy arc extinguishing technology.
■Excellent electrical performance: rated current 3150A, rated short-circuit breaking current 315.kA, electrical life 24 times.
■Excellent mechanical reliability: mechanical life is 6000 times, and after simple adjustment, it can reach more than 10000 times, which fully meets the user's requirements for continuous operation and low maintenance.
■The spring operating mechanism has a small number of parts and low noise.
■The spring operating mechanism adopts an integral cast aluminum alloy frame, which has a long mechanical life, high reliability, easy maintenance, and is suitable for frequent operation.
■Suitable for Class IV dirty areas.
■Reliable sealing structure to ensure that the annual leakage rate is less than 0.5%.
■Meet the harsh operating environment, applicable ambient temperature: -40℃～+40℃
LW36-72.5 porcelain column type high voltage AC sulfur hexafluoride circuit breaker is equipped with CT20 spring operating mechanism, adopts self-energy arc extinguishing principle, and is a single-break structure. The three poles of each circuit breaker are installed on a frame to realize three-phase mechanical linkage through the transmission mechanism. The electric control can realize remote and local operation.
LW36-72.5 self-energy high voltage AC sulfur hexafluoride circuit breaker is an outdoor three-phase porcelain column type electrical equipment, mainly suitable for AC 50Hz, 72.5kV power system in high-cold areas (for power stations in general areas and power stations in high-cold areas at -40℃). This product can be operated frequently and can be used as a contact circuit breaker.
Product performance
This product has all the performance of LW36-126 circuit breaker, namely:
■Adopt thermal expansion plus auxiliary compressed air self-energy arc extinguishing technology.
■Excellent electrical performance: rated current 3150A, rated short-circuit breaking current 315.kA, electrical life 24 times.
■Excellent mechanical reliability: mechanical life is 6000 times, and after simple adjustment, it can reach more than 10000 times, which fully meets the user's requirements for continuous operation and low maintenance.
■The spring operating mechanism has a small number of parts and low noise.
■The spring operating mechanism adopts an integral cast aluminum alloy frame, which has a long mechanical life, high reliability, easy maintenance, and is suitable for frequent operation.
■Suitable for Class IV dirty areas.
■Reliable sealing structure to ensure that the annual leakage rate is less than 0.5%.
■Meet the harsh operating environment, applicable ambient temperature: -40℃～+40℃
