LW25□-252

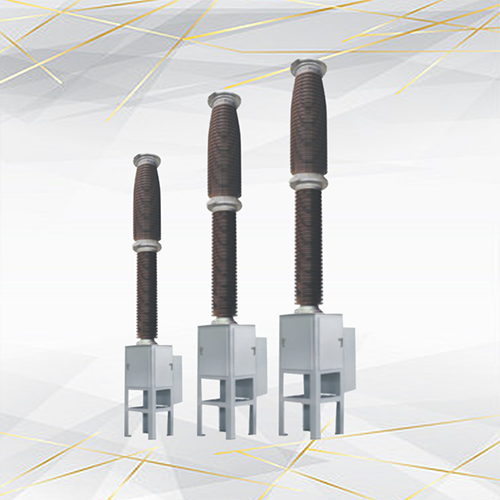

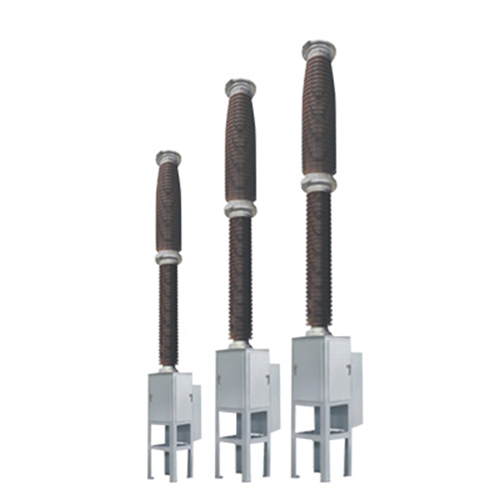

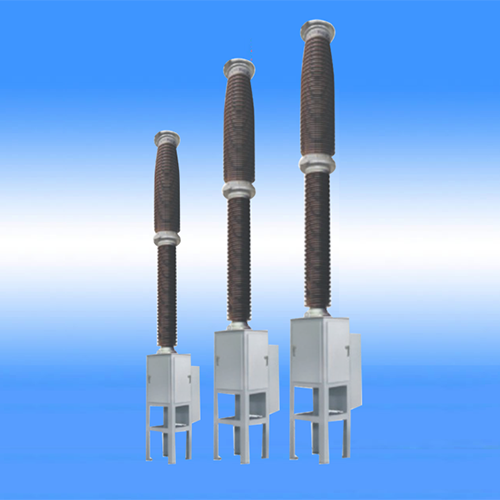

LW25□-252 is three-phase AC 50Hz outdoor extra-high voltage SF6 circuit breaker, designed for 252kV(220kV grade) power transmission and transformation system. The product takes sulfur hexafluoride(SF6) as insulation and arc-extinguishing medium, equipped with mature hydraulic operating mechanism, fully conforming to IEC62271 and domestic GB standard requirements.
The circuit breaker is widely applied in 220kV backbone power grid substations, thermal power plants, hydropower stations, new energy booster stations and large industrial power supply projects. It realizes reliable closing, opening of normal load current and short-circuit fault current, serving as core control and protection equipment for EHV power transmission system.
Product Core Advantages
Superior SF6 arc-quenching performance, strong short-circuit breaking capacity, stable operation under complex grid working conditions;
Optimized hydraulic operating mechanism, small operation impact, low failure rate, long service cycle;
Advanced overall sealing technology, ultra-low annual SF6 leakage rate, fewer routine maintenance;
Rational modular structure, convenient field assembly and overhaul, strong environmental adaptability for outdoor high-low temperature, rainy and windy areas.
Main Technical Parameters
Rated voltage:252kV
Rated frequency:50Hz
Rated current:2000A/2500A/3150A
Rated short-circuit breaking current:40kA,50kA
Driving mode:Hydraulic operating mechanism
Application:220kV power grid, power station, photovoltaic & wind power booster substation
Product Details
LW□-252
Outdoor high voltage AC SF6 circuit breaker
□ Meaning of type
□Introduction
□The LW□-252/4000-50 self-extinction AC circuit breaker which is outdoor type finds its universal range of applications for the electrical system with elevation not greater than 2000m,ambient temperature not lower than-30℃,dirtiness grade not higher than IV,alternating current 50Hz and the maximum voltage 126kV.It is used for cutting the rated current, malfunction current or switching the circuitry,to control and protect the electrical system,and it can also be used for connecting with the circuit breaker.
□The gas of the SF6 is employed as the arc-extinguishing medium and the dielectric material.The self-extinction technology and the new-type spring operating mechanism are introduced in the SF6 circuit breaker.Thus the circuit breaker has good qualities with long electrical life,low operation power lower noise,high reliability,simple structure,small and long overhaul periods.It can fully replace the import same type one.
□ Characteristic of structure
□The breaker introduces the three-phase porcelain-pole with single interrupter structure.A spring operating mechanism is supplied and the mechanical action of the three-phase is inner connected.The gas of the SF6 is connected in the three-phase pole parts.A density controller with temperature compensation is used to monitor the gas of the SF6.Because of the self-extinction arc control principle and optimized design,it improves the efficiency of mechanism and reduces the operating power.□Excellent breaking performance and long electrical life.
□High mechanism reliability and can be operated frequently.
□Because of the high insulation intensity and excellent contact movement,the breaking capacity current will not re-burn.
□The circuit breaker has high outer insulation level and ratio creepage distance is greater than.So it has excellent performance of resisting the filth and the earthquake,it is also can be operated safely under the environment with atrocious weather.
□High carrying ability:it has high capability margin as the temperature of each contact rises when it is under temperature rise test in the circuit(1.2times of4000A).
□The appearance of the breaker is compact,and the installation and debugging is very easy.The maintenance is also very convenient.
□Technical data
1)Main technical data of breaker
|
No. |
N a m e |
Unit |
Value |
||
|
1 |
Rated voltage |
|
252 |
||
|
2 |
Rated power frequency withstand voltage(1min) |
To earth |
kV |
460 |
|
|
|
|
Between interrupter |
|
460+146 |
|
|
3 |
Rated thunder impulse withstand voltage |
To earth |
|
1050 |
|
|
|
|
Between interrupter |
|
1050+206 |
|
|
4 |
Rated frequency |
Hz |
50 |
||
|
5 |
Rated current |
A |
4000 |
||
|
6 |
Amplitude factor |
|
1.3 |
||
|
7 |
Rated shor-circuit breaking current |
kA |
50 |
||
|
8 |
Rated short-circuit making current(peak) |
kA |
125 |
||
|
9 |
Rated short-circuit with stand current |
kA |
50 |
||
|
10 |
Rated peak value withstand current |
|
125 |
||
|
11 |
Rated short-circuit duration |
s |
3 |
||
|
12 |
Rated out-of-phase breaking current |
kA |
12.5 |
||
|
1.3 |
Breaking current of close-in fault |
kA |
90%lk,75%lk |
||
|
14 |
Rated line-charging breaking current |
A |
200 |
||
|
15 |
Operating sequence |
|
O-0.3s-CO-180s-cO |
||
|
16 |
Resistance ofthe main circuit |
μΩ |
≤55 |
||
|
17 |
Rated gauge pressure of SF6(20℃) |
Mpa |
0.6 |
||
|
18 |
Minimum functional gauge pressure(20℃) |
Mpa |
0.55±0.015/0.50±0.015 |
||
|
19 |
Annual leakage rate of SF6 |
|
≤0.5% |
||
|
20 |
Amount of water ofSF6(V/V) |
ppm |
≤150 |
||
|
21 |
Mechanical life |
次 |
10000 |
||
|
22 |
Electrical level of radio interference |
μV |
<500 |
||
|
23 |
Creepage distance |
Between interrupter |
mm |
≥8660 |
|
|
|
|
To earth |
|
≥6900 |
|
|
24 |
Eachfilled with SF6gas weight |
kg |
24 |
||
|
25 |
Weight per breaker |
kg |
1500 |
||
2)Main technical data of structure
|
No. |
N a m e |
Unit |
Value |
|
|
1 |
Auxilary circuit voltage |
V |
DC220V、AC220V |
|
|
2 |
Thevoltage/current of the openlng and closlng coll |
V/A |
DC110/4;DC220/2.5 |
|
|
3 |
Energy storage motor |
Rated voltage |
V |
DC220V、AC220V |
|
|
|
The range of normal working voltage |
V |
85%-110% |
|
|
|
Power |
w |
600 |
|
4 |
The energy storage time of motor |
s |
≤15 |
|
|
5 |
The loop voltage of the heatar and the lamp |
V |
AC220V |
|
|
6 |
Rated voltage of the auxllary switch |
V |
DC220V、AC220V |
|
|
7 |
Rated current of the auxiliary switch |
A |
10 |
|
|
8 |
Contacts of the auxiliary switches |
|
10normal opened contacts and 10 normal closed contacts |
|
3)Mechnical adjustment of the breaker
|
No. |
N a m e |
Unit |
Value |
|
1 |
Center dlstance between poles |
mm |
3000-4000 |
|
2 |
Strode length of the moving contact |
mm |
160±3 |
|
3 |
Contact stroke length of the moving contact |
mm |
50±2 |
|
4 |
Switch-off time |
mm |
30±5 |
|
5 |
Swltch-on tIme |
m/s |
90±15 |
|
6 |
Break tlme |
m/s |
≤60 |
|
7 |
Switch-on/off time |
ms |
≤80 |
|
8 |
Switch-off/on time |
ms |
300 |
|
9 |
The time difference of the opening of three phases |
ms |
≤3 |
|
10 |
The time diffarence of the closing of three phases |
ms |
≤5 |
口Order notice
□The type and the speclflcatlon of the clrcult breaker.
□Rated electric parameter(voltage,current,rated short-circuit breaking current and so on).
□Environmental condition(temperature,altitude,filth level and so on).
□Rated alectric parametar of control loop(rated voltage of energy storage motor,rated voltageo fthe opening and closing coils).
□The name and the number of the accessories when required.
□The connection direction of the primary upper terminal.
□Outline dimension
□As per the drawing below.
□LW-252 circuit breaker weight:4500kg.
